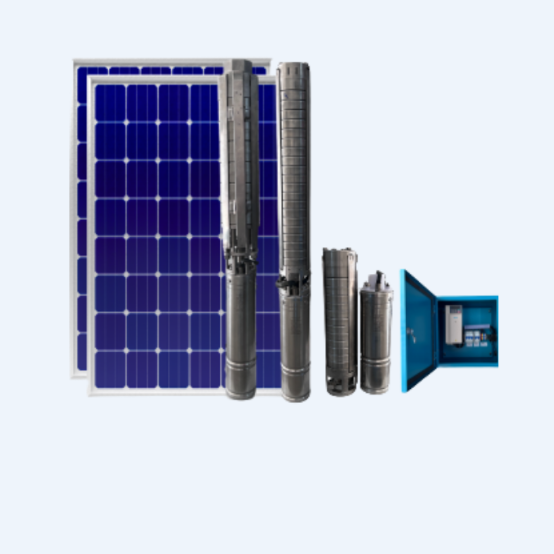

1 HP To 5 HP Solar Submersible Pump
1–5 HP solar submersible pump delivers efficient water, dependable...
5 HP To 15 HP Solar Submersible Pump
5–15 HP solar submersible pumps deliver reliable, efficient irrigation...

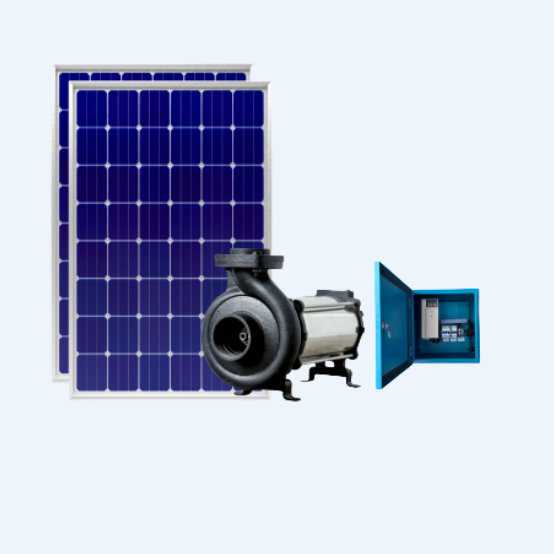

3 HP To 10 HP Solar Open Well Pump
Reliable solar open well pumps for eco-friendly water management...

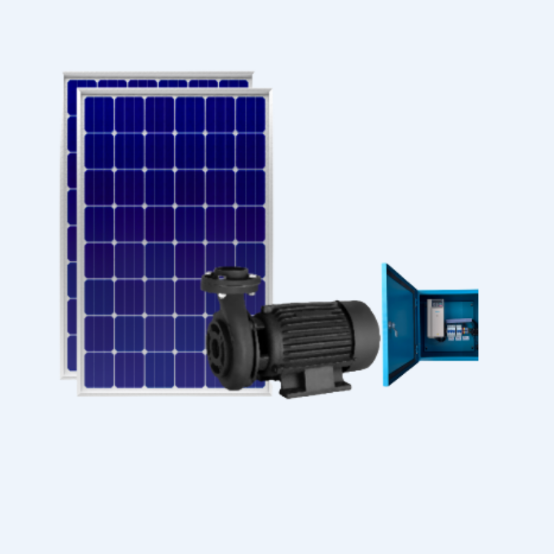

1 HP To 10 HP Solar Monoblock Pump
High-performance monoblock pump delivering eco-friendly, cost-saving...
1 HP To 10 HP Solar Submersible Pump
Durable solar submersible pump ensuring efficient, eco-friendly, and reliable...

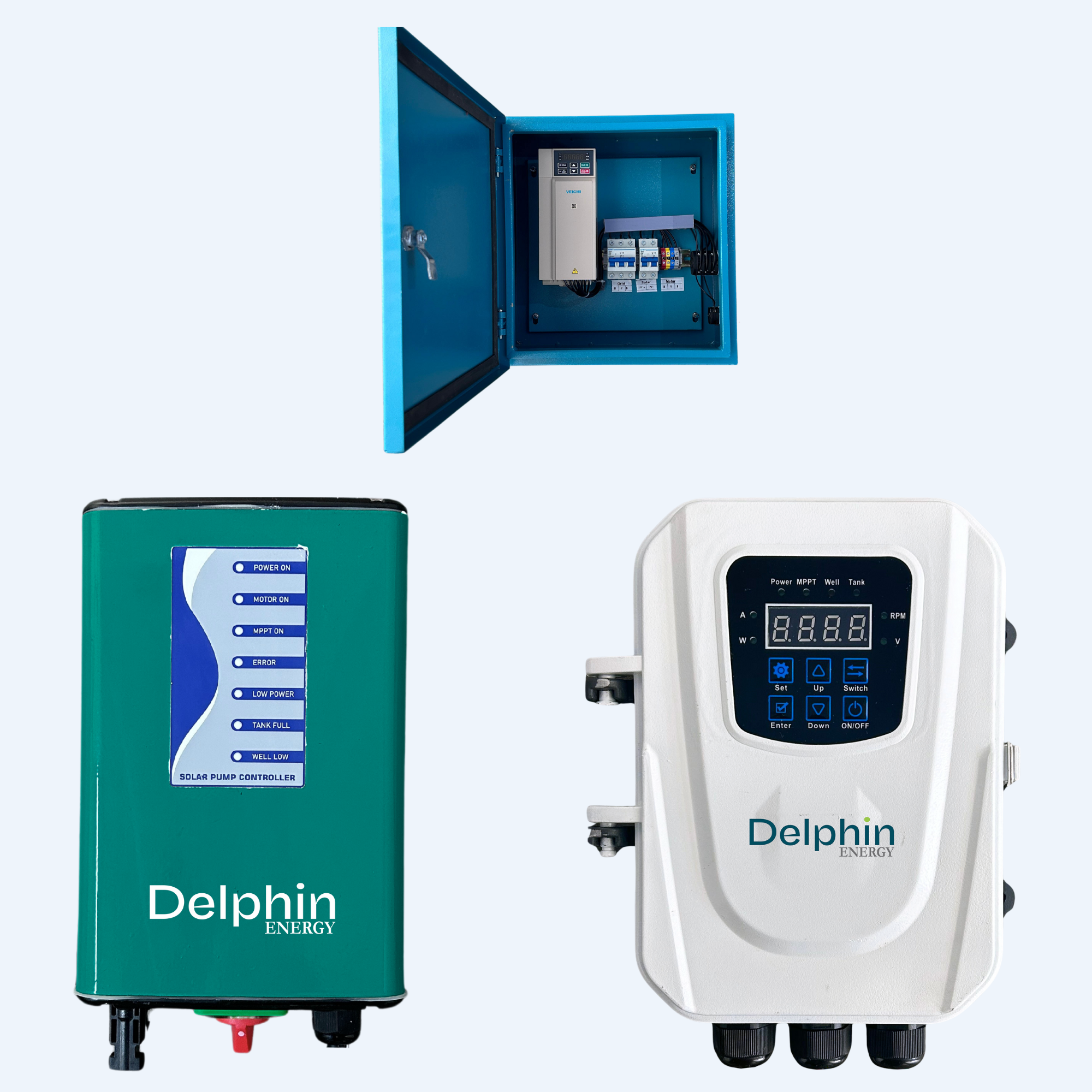

ENERGY CONTROLLER
AC Controller:
- Designed for Solar Water Pump that require an AC power supply
- Converts the DC power generated by solar panels into AC power to operate the pump.
DC Controller:
- Ideal for remote locations or off-grid applications where DC power is utilized.
- Enables efficient use of solar energy by eliminating the need for additional power conversion.
Power Sharing Controller:
- Power sharing capability (Blending) between Solar DC Power and AC Power.
- Smart Control prioritizes Solar DC Power and supplements the remaining power from the AC Grid.
- Specially designed for Solar Water Pump.
Discharge Report
| HP/KW | V | HEAD (M) | LPM | LPD | Delivery Size |
|---|---|---|---|---|---|
| 1 / 0.75 | 72V | 3 | 73 | 262800 | 1.25" |
| 30 | 50 | 18000 | 1.25" | ||
| 40 | 41 | 14760 | 1.25" | ||
| 50 | 31 | 11160 | 1.25" | ||
| 60 | 18 | 6480 | 1.25" | ||
| 2 / 1.5 | 160V | 32 | 130 | 46800 | 2" |
| 48 | 85 | 30600 | 1.5" | ||
| 72 | 55 | 19800 | 1.25" | ||
| 80 | 50 | 18000 | 1.25" | ||
| 100 | 30 | 10800 | 1.25" | ||
| 3 / 2.2 | 230V | 27 | 225 | 81000 | 2" |
| 48 | 125 | 45000 | 2" | ||
| 72 | 98 | 35280 | 2" | ||
| 80 | 90 | 32400 | 1.5" | ||
| 100 | 65 | 23400 | 1.5" | ||
| 5 / 3.7 | 380V | 30 | 415 | 149400 | 3" |
| 50 | 210 | 75600 | 2.5" | ||
| 70 | 140 | 50400 | 2" | ||
| 95 | 105 | 37800 | 2" | ||
| 110 | 85 | 30600 | 2" | ||
| 120 | 65 | 23400 | 2" | ||
| 7.5 / 5.5 | 300V | 30 | 490 | 176400 | 3" |
| 40 | 330 | 118800 | 2.5" | ||
| 60 | 200 | 72000 | 2" | ||
| 110 | 135 | 48600 | 2" | ||
| 150 | 95 | 34200 | 2" | ||
| 10 / 7.5 | 380V | 50 | 405 | 145800 | 3" |
| 85 | 235 | 84600 | 2.5" | ||
| 120 | 135 | 48600 | 2" | ||
| 140 | 105 | 37800 | 2" | ||
| 15 / 11 | 380V | 50 | 900 | 324000 | 3" |
| 80 | 450 | 162000 | 3" | ||
| 120 | 320 | 115200 | 3" | ||
| 180 | 220 | 79200 | 2.5" | ||
| 220 | 160 | 57600 | 2" | ||
| 280 | 120 | 43200 | 2" | ||
| 340 | 100 | 36000 | 2" |
