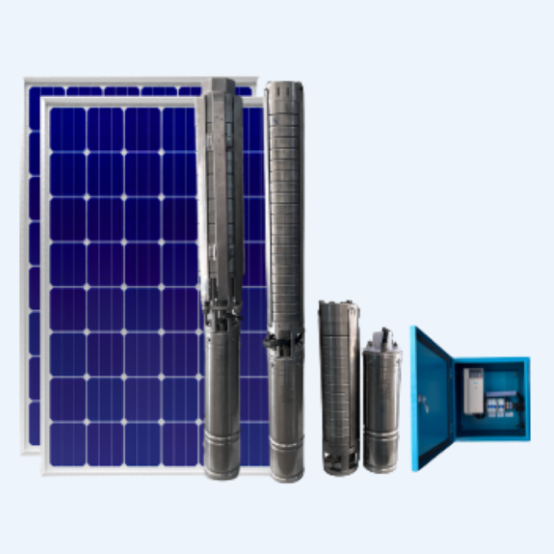

1 HP To 10 HP Solar Submersible Pump
The 1 HP to 10 HP Solar Submersible Pump offers efficient and sustainable water lifting for agriculture and domestic needs. Powered entirely by solar energy, it ensures zero operating cost, superior performance, and long service life even in challenging conditions.
Engineered for durability and efficiency, this solar submersible pump delivers dependable performance across varying water depths. Perfect for irrigation and rural water systems, it combines eco-friendly operation, minimal maintenance, and high discharge capacity with advanced solar-driven technology.
Reliable solar submersible pump offering efficient, eco-friendly water solutions for agriculture, irrigation, and domestic applications.
SUBMERSIBLE PUMP
| Pump Shaft | SS 410 |
| Suction Bracket | Cast Iron |
| Pump Hardware | SS 304 |
| Impeller | NORYL / SS |
| Impeller Type | Radial |
| Stage Casting | NORYL / SS |
| Pump Jacket | SS |
| Pump Bearing Bush | Leaded Bronze |
SUBMERSIBLE MOTOR
| RPM | 2800 |
| Motor Shaft | SS 410 |
| Motor Bearing Bush | SS 304 |
| Thrust Bearing | LTB 5 Grade |
| Lower & Upper Housing | Cast Iron / SS |
| Stator Shell | SS |
| Winding Wire | 3𝒪 Copper |
| Motor Hardware | SS 304 |
Solar Pump — Panel Connection Matrix
| HP/KW | MODEL | V | I | Cable size (Sq.mm) | Panel Connection |
|---|---|---|---|---|---|
| 1 / 0.75 | DESPM-4S01 | 50v | 13A | 1x3x2.5 | 545W × 2 Nos |
| 2 / 1.5 | DESPM-4S02 | 90v | 13A | 1x3x2.5 | 545W × 4 Nos |
| 3 / 2.2 | DESPM-4S03 | 160v | 13A | 1x3x2.5 | 545W × 6 Nos |
| 5 / 3.7 | DESPM-4S05 | 240v | 13A | 1x3x4 | 545W × 9 Nos |
| 7.5 / 5.5 | DESPM-4S07 | 330v | 13A | 1x3x4 | 545W × 13 Nos |
| 10 / 7.5 | DESPM-4S10 | 415v | 13A | 1x3x4 | 545W × 17 Nos |
