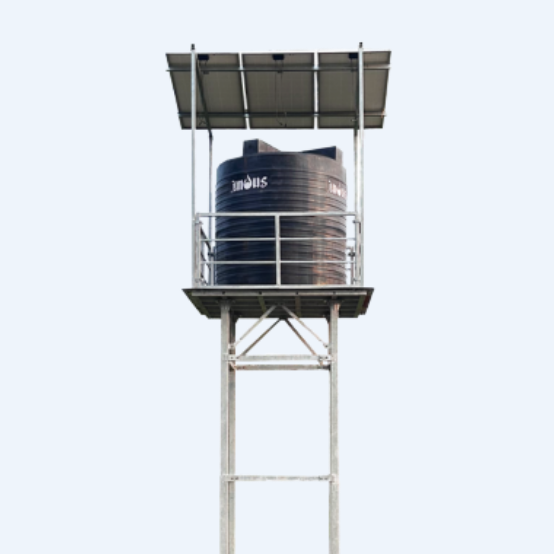

Solar Water Tank

Solar Water Tank

The Solar Water Tank is a high-performance solar water storage system designed for sustainable water management. Made from UV-resistant and corrosion-proof materials, it ensures long-lasting durability, purity, and strength. Perfect for solar pump setups, it offers reliable, eco-friendly, and maintenance-free water storage for continuous clean supply.

Our Solar Water Tank provides efficient and sustainable solar water storage powered by renewable energy. Built with advanced insulation and UV-stabilized materials, it maintains water quality and system performance. Designed for long service life, it supports eco-friendly operations and dependable solar water solutions for all environments.

Download Brochure

2000L 5000L 5000L 4.5M

2000L WATER TANK STRUCTURE DETAILS

Nos Details Size of Pipe (mm) Dimensions (mm)
4 Leg Bottom 72 × 72 3000
2 Leg Upper 50 × 50 1900
2 Leg Upper 50 × 50 2100
1 Frame 50 × 50 1510 × 1510
2 Rafter 40 × 40 1650
8 Purlin 50 × 25 3000
8 Beat Bottom 32 × 32 1390
8 Beat Cross 32 × 32 1430
4 Beat Upper 32 × 32 1410

5000L WATER TANK STRUCTURE DETAILS

Nos Details Size of Pipe (mm) Dimensions (mm)
4 Leg Bottom 100 × 100 3000
2 Leg Upper 50 × 50 2900
2 Leg Upper 50 × 50 3100
1 Frame 60 × 60 2050 × 2050
2 Rafter 40 × 40 1650
2 Purlin 50 × 25 3000
8 Beat Bottom 40 × 40 1890
8 Beat Cross 40 × 40 1720
4 Beat Upper 40 × 40 1915

5000L 4.5M WATER TANK STRUCTURE DETAILS

Qty. Details Size of Pipe (m) Dimensions (m)
4 Leg Bottom 0.1 × 0.1 4.5
2 Leg Upper 0.05 × 0.05 4.0
2 Leg Upper 0.05 × 0.05 4.3
1 Frame 0.06 × 0.06 2.05 × 2.05
2 Rafter 0.05 × 0.05 2.2
2 Purlin 0.025 × 0.05 3.0
12 Beat Bottom 0.04 × 0.04 1.89
24 Beat Cross 0.04 × 0.04 1.5
8 Beat Upper 0.04 × 0.04 1.93
1 Ladder 0.04 × 0.04 6.0
8 Upper Cross Beat 1.0
