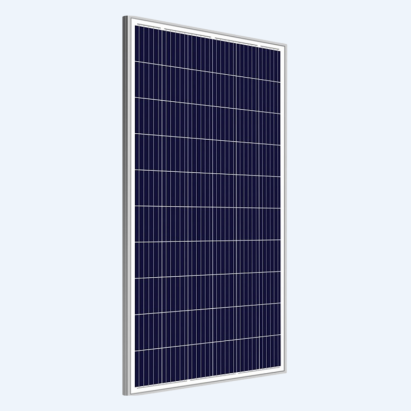

Polycrystalline PV Module
Polycrystalline PV Modules are efficient and durable solar panels made from multiple silicon crystals. They offer excellent performance in diverse climates, providing a cost-effective and reliable solution for residential, commercial, and agricultural solar power systems with long service life and low maintenance.
Polycrystalline PV Modules deliver reliable solar energy with high efficiency and durability.
Mechanical Specification
| Attribute | 40W | 50W | 60W | 75W | 80W | 100W | 110W | 120W | 165W | 335W |
|---|---|---|---|---|---|---|---|---|---|---|
| Dimension (Length) in mm | 351 | 546 | 601 | 731 | 670 | 1031 | 1120 | 1146 | 1485 | 1986 |
| Dimension (W × T) in mm | 666 × 35 | 666 × 35 | 666 × 35 | 666 × 35 | 915 × 30 | 666 × 35 | 670 × 30 | 666 × 35 | 666 × 35 | 100 × 35 |
| Weight (kg) | 3.40 | 4.05 | 5.00 | 5.40 | 7.3 | 7.20 | 8.4 | 9.80 | 12.7 | 21.5 |
| Number of Cells | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 72 |
| Junction Box (IP68) Terminal | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of Bypass Diodes | 1 | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 3 |
| Mounting Hole Pitch (Y-mm) | 218 | 273 | 303 | 365.5 | -- | 515.5 | -- | 573 | 742.5 | -- |
| Mounting Hole Pitch (X-mm) | 635 | 635 | 635 | 635 | -- | 635 | -- | 635 | 635 | -- |
Polycrystalline PV Module — Technical Specifications
| Parameter | 40W | 50W | 60W | 75W | 80W | 100W | 110W | 120W | 165W | 335W |
|---|---|---|---|---|---|---|---|---|---|---|
| Optimum Operating Voltage (VMP) | 17.85 | 17.89 | 18.04 | 17.99 | 18 | 17.99 | 18.43 | 17.9 | 19.2 | 37.38 |
| Optimum Operating Current (IMP) | 2.25 | 2.8 | 3.33 | 4.17 | 4.44 | 5.57 | 5.97 | 6.75 | 8.79 | 8.97 |
| Open Circuit Voltage (VOC) | 21.95 | 21.7 | 21.66 | 22.12 | 22 | 21.84 | 22.51 | 21.58 | 22.2 | 44.89 |
| Short Circuit Voltage (ISC) | 2.44 | 3.04 | 3.67 | 4.49 | 4.85 | 6.11 | 6.48 | 7.36 | 9.34 | 9.28 |
| Module Efficiency (%) | 13.07 | 13.55 | 14.21 | 14.74 | 13.05 | 13.67 | 14.66 | 14.2 | 14.6 | 17.26 |
