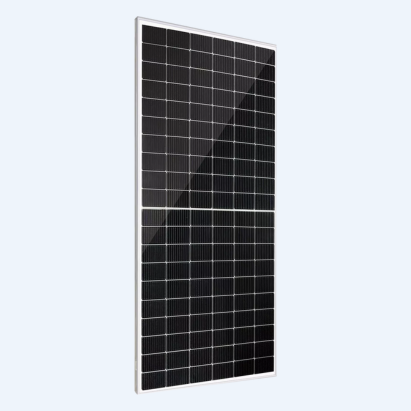

Monocrystalline PV Module
Monocrystalline PV Modules are high-efficiency solar panels made from single-crystal silicon, ensuring superior performance and durability. They deliver maximum power output even in low light, making them ideal for residential, commercial, and industrial solar energy systems seeking long-term reliability and premium efficiency.
Mechanical Specification
| Attribute | 40W | 50W | 60W | 75W | 100W | 120W | 150W | 200W |
|---|---|---|---|---|---|---|---|---|
| Dimension (Length) in mm | 361 | 432 | 545 | 606 | 776 | 1031 | 1151 | 1650 |
| Dimension (W × T) in mm | 666×30 | 666×35 | 666×35 | 666×35 | 666×35 | 666×35 | 666×35 | 666×35 |
| Weight (kg) | 2.85 | 3.40 | 4.05 | 5.0 | 5.50 | 7.30 | 9.12 | 12 |
| Number of Cells | 36 | 36 | 36 | 36 | 36 | 36 | 36 | 36 |
| Junction Box (IP68) Terminal | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 |
| Number of Bypass Diodes | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Hole Pitch (Y-mm) | 180 | 218 | 273 | 303 | 365.5 | 515.5 | 575.5 | 825 |
| Mounting Hole Pitch (X-mm) | 635 | 635 | 635 | 635 | 635 | 635 | 635 | 635 |
Monocrystalline PV Module — Technical Specifications
| Parameter | 40W | 50W | 60W | 75W | 100W | 120W | 150W | 200W |
|---|---|---|---|---|---|---|---|---|
| Optimum Operating Voltage (VMP) | 18.2 | 20.00 | 18.00 | 20.00 | 19.23 | 18.6 | 18.5 | 23.56 |
| Optimum Operating Current (IMP) | 2.2 | 2.51 | 3.33 | 3.75 | 5.21 | 6.45 | 8.56 | 8.49 |
| Open Circuit Voltage (VOC) | 22.2 | 22.5 | 22.68 | 22.7 | 22.12 | 22.7 | 22.5 | 27.76 |
| Short Circuit Voltage (ISC) | 2.37 | 2.65 | 3.88 | 4.40 | 5.50 | 6.84 | 8.11 | 9.00 |
| Module Efficiency (%) | 18.80 | 18.80 | 18.80 | 18.80 | 18.80 | 18.80 | 18.80 | 18.80 |
